kiosk CaRd PRiNteR

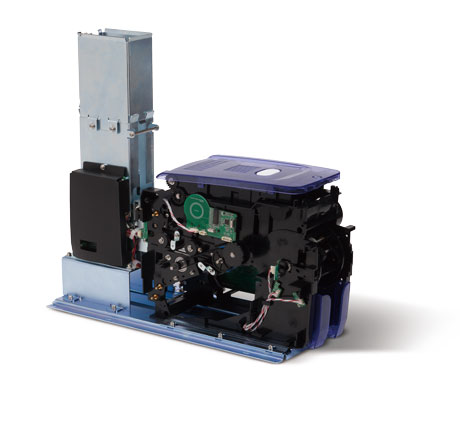

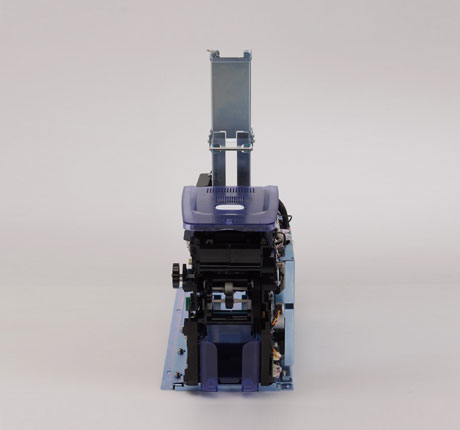

NtpK series

  • Single-tray & Multi-tray Card Personalization module for instant card issuance at self-serviced kiosk.
  • Proven quality of printing, high encoding capacity and various card hoppers with small footprint.
  • Varied capacities of card hopper (150, 300, 500 cards hopper)
  • Optional Encoding : Magnetic Stripe, Contact and card encoding, Contactless smart card encoding
    * Other functions available upon request
NTPK NTPK NTPK NTPK

application

  • NTPK
    • Loyalty card
    • Gift card
    • Membership card
    • Visitor badge
  • NTPK
    • VTM
    • Pre-paid card
    • Transportation card

specifications

item detail
Printer Direct thermal printing
Single & dual
300dpi printing resolution
Full-color and monochrome printing
Media Plastic card Card type: PVC and composite PVC cards
Card thickness: 0.76 mm, other thickness upon request
Card format: ISO CR80 -ISO 7810 (53.98mm x 85.60mm)
Ribbon YMCKO ribbon: 200 prints/roll or 250 prints/roll
YMCKOK ribbon: 170 prints/roll
1/2ymcKO ribbons: 400 prints/roll
Mono ribbon (black, silver, gold, white) :1000 prints/roll
Printing speed Full color printing Single side: more than 150 cards/ hour
Dual side: more than 100 cards/ hour
Mono printing 700 cards/ hour
Card reject Ability to retrieve the defective cards and uncollected cards (default reject card bin)
Optional encoding Magnetic stripe encoding ISO7811 (track 1,2 and 3) Coercivity : Hi-Co & Lo-Co
Contact smart card encoding ISO 7816, EMV Level 1 and PBOC 3.0 (PS/SC, serial)
Contactless smart card encoding ISO 14443 type A & B, ISO 15693, Mifare
*Other type upon request
Card hopper capacity Each hopper available with 3 capacities 150 cards, 300 cards and 500 cards - 0.76mm *other capacity upon request
Interface USB 2.0
Network (optional) : Built in 10/100 Ethernet
Driver & software Operating system Windows XP, Windows Vista / Window 7 & 8, Windows 2003 / 2008 Server ☞ Microsoft Windows Hardware Quality Labs (WHQL)
Software Package DLL, PCL and test program
Temperature Operating 5 ~ 40℃
Storage -10 ~ 60℃
Power NTPK-51FXX Input : AC 100~240V, 50 ~ 60Hz
Output : DC 24V, 3.75A
NTPK-52FXX Input : AC 100~240V, 50 ~ 60Hz
Output : DC 24V, 3.75A
NTPK-54MXX Input : AC 100~240V, 50 ~ 60Hz
Output : DC 24V, 5A
NTPK-58MXX Input : AC 100~240V, 50 ~ 60Hz
Output : DC 24V, 7A
Dimension Shutter 599.3(L) x 248.9 (H) x 208.2(W) / 150 pcs
599.3(L) x 358.2 (H) x 208.2(W) / 300 pcs
599.3(L) x 510.2 (H) x 208.2(W) / 500 pcs
Bezel 593.7(L) x 358.2(H) x 208.2(W) / 300pcs
* Dimension is subject to change depending on the options
Warranty 1-year limited warranty.
