ATM & Kiosk Module

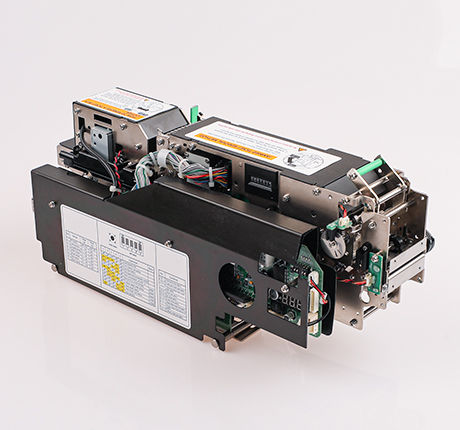

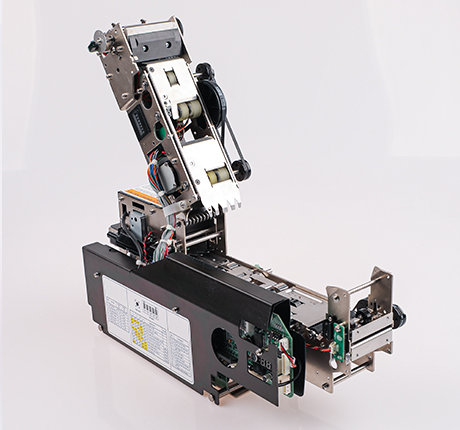

TICKET PRINTER

TP-7000

  • Thermal ticket issuing module : Fan-fold type paper ticket
  • Supports Mag.Stripe ticket (ISO 7811 standard)

features

options

application

specifications

Item Detail
Ticket Thickness 0.17 ~ 0.22 mm, ISO Size(85mm × 54mm)
Coercive force 2750 ± 250 Oe, 300 ± 25 Oe (SELECTABLE)
Recording type F2F
Track(MS) 1, 2, 3 Track, Location track by ISO 7811 Standard
Magnetic density 1 Track : 210 BPI (76 byte)
2 Track : 75 BPI(37 byte)
3 Track : 210 BPI(104 byte) or 105 BPI (33 byte)
Magnetic width(Ticket) Over 10.28 mm(ISO 7811 Standard)
Magnetic Head Read : 1mm , Write : 3mm
Paper Ticket Stacker Fanfold Type(1Box Packing Capacity : 2,000 ~ 3,000 Sheets)
Printing type Direct Thermal
Printing density 300 DPI
Dot Pitch 0.0847mm
Ticket Cutter Included (Guillotine Cutter)
Printing speed Within 2.5 Seconds per ticket
Magnetic Head Life 4,000,000 pass
Thermal Head Life 150Km(1 × 10 Pulse)
CUTTE R Life 300,000 Times
Motor type Step Motor, Coreless DC Motor
Box for Used ticket Included(40mm)
Communication Com0 : RS-232C(9600, 9200, 38400, 57600 bps) Com1 : RS-232C(19200 bps)
Power DC 24V,5V
Counter EEPROM Save Type(7 digits) & MECHANICAL COUNTER
Operating Temperature 0℃ ~ 45℃
Storage Temperature -10℃ ~ 60℃
Dimension (with Case) 461.7(L) × 219.7 (H) × 126.7 (W), About 5.25 kg

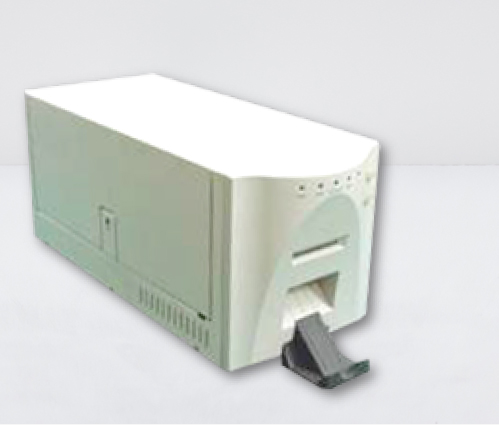

*OPTION : PAPER STACKER (IN,OUT), SMPS, REJECT BOX, DUST BOX, CASE
DIMENSION OF THE PRODUCTS CAN BE MODIFIED DEPENDING ON THE TYPE OF THE PRODUCT.
