ATM & Kiosk Module

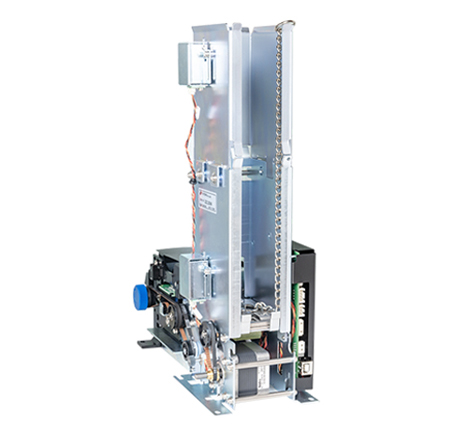

CARD DISPENSER(SINGLE TRAY)

TD-1000

  • High dispensing speed
  • Support various card types
  • Adopting various-quantity cassette type
  • Hopper capacity : Default 150pcs
    (Option : 300pcs, 500pcs)
  • Option : RF Encoding function, Reject function
  • HALF type SIM Card Dispenser

features

options

application

specifications

Item Description Remark
Card Thickness 0.2mm ~ 1.0mm
Card Size ISO 7810 / CR-80 / CR-79
Supportive Card Material PVC, PET
Card Hopper Capacity 150 cards, 300 cards, 500 cards Based on 0.76mm
Contactless smart cards ISO14443 type A/B, Mifare, Desfire ISO 18092 (NFC) Optional
Card Capture function Retract uncollected cards. Retain an error card Optional
Remaining Card Check Low card level warning, Empty card hopper error
Interface RS-232C, USB 2.0
Dimension TD-1000-R100: 100(W) x 149(L) x 217mm(H) (without option/150 cards) 300 cards: 326mm(H)
TD-1000-R11R : 100(W) x 232(L) x 217mm(H) (with option/150 cards) 500 cards: 478mm(H)
Feeding Speed 0.6 ~ 1.0 Sec/Card Without RF Card Encoding
Stacker 150 cards, 300 cards, 500 cards Based on 0.76mm
Reject bin capacity 20 cards Optional
Power DC 24V ± 10%, 5A Adaptor (optional)
Environment
Conditions
* Temperature & Humidity
- Operating : 50~40℃, 20~80%RH
- In Storage : -10~60℃, 20~80%RH
